Gahow Wang 41232f49d3 Measure inter-turn T_external on the raw production trace; add f3a CDF ...

The earlier conversation suggested agentic might "have no human think-time"
and therefore live in a strict closed-loop regime. The user pushed back:
tool calls also take time and might restore a chatbot-like buffer between
turns. To resolve this, we go to the actual data.

The previously-published per-record formatted trace only carries arrival
timestamps, so an arrival-to-arrival diff conflates W_turn + T_external.
The raw trace (/home/admin/cpfs/wjh/ali-trace/trace-glm5.1-formatted/
051315-051317-raw.jsonl on dash0) additionally carries request_end_time_ms,
which lets us compute the pure inter-turn external gap
T_external = next.request_ready_time_ms - prev.request_end_time_ms
for each session's consecutive turn pair.

Headline numbers (n = 783 k inter-turn gaps over 127 k multi-turn sessions):

  p25  = 0.69 s
  p50  = 1.6  s
  p75  = 8.6  s
  p90  = 44   s
  mean = 37   s   (heavy long-tail; paused/abandoned sessions)

  39 % of gaps < 1 s
  67 % of gaps < 5 s
  87 % of gaps < 30 s

The bulk of the distribution is dominated by sub-second to a-few-seconds
tool-call latencies. Under any current scheduler (e.g. unified TTFT p90 =
7.3 s, lmetric 15.7 s), W_turn is already at or above the 75th percentile
of T_external, so dispatch coupling is the dominant regime for the
majority of turns — not a corner case.

This corrects the earlier conflated arrival-to-arrival "median gap 11 s"
figure (which folded W_turn into T_external). The true T_external median
is 1.6 s.

Adds:
- scripts/compute_inter_turn_gap_remote.py: dash0-side aggregator
- analysis/characterization/data/agentic_inter_turn_gap.json: 500-point
  CDF cache + summary stats, scp'd back from dash0
- scripts/plot_inter_turn_gap.py: local figure renderer

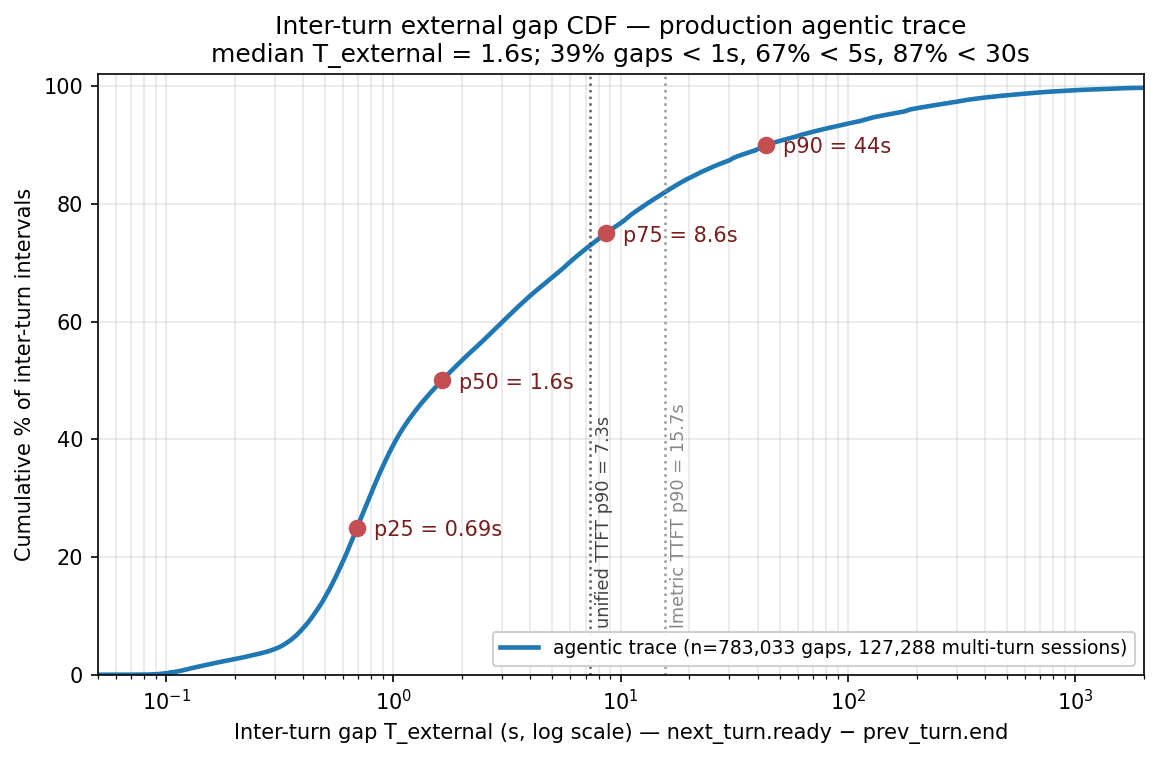

- figs/f3a_inter_turn_gap.png: log-x CDF with p25/p50/p75/p90 anchors and
  unified/lmetric TTFT p90 reference lines

Next step (per user): pull a chatbot trace through the same pipeline and
compare distributions side by side; this will let §2.3 stop hand-waving
about "no think-time" and instead present the regime split empirically.

Co-Authored-By: Claude Opus 4.7 <noreply@anthropic.com>
