Claude Code Agent e9ad1c4bc7 feat(experiments): E4 vs E1 results + p99 attribution figures ...

Headline: KVC v2 + load-floor + RDMA beats naive PD-disagg on
mean/p50/p90 by 30-65% (TTFT p50 31s vs 88s, lat p50 37s vs 93s,
wall-clock 64 min vs 88 min). Loses p99 by ~8% (TTFT 224 vs 207).

Wrote 4 figures (docs/figures/):
  e1_vs_e4_ttft_pdf.png         — bimodal E4 fast-path peak vs E1 single peak

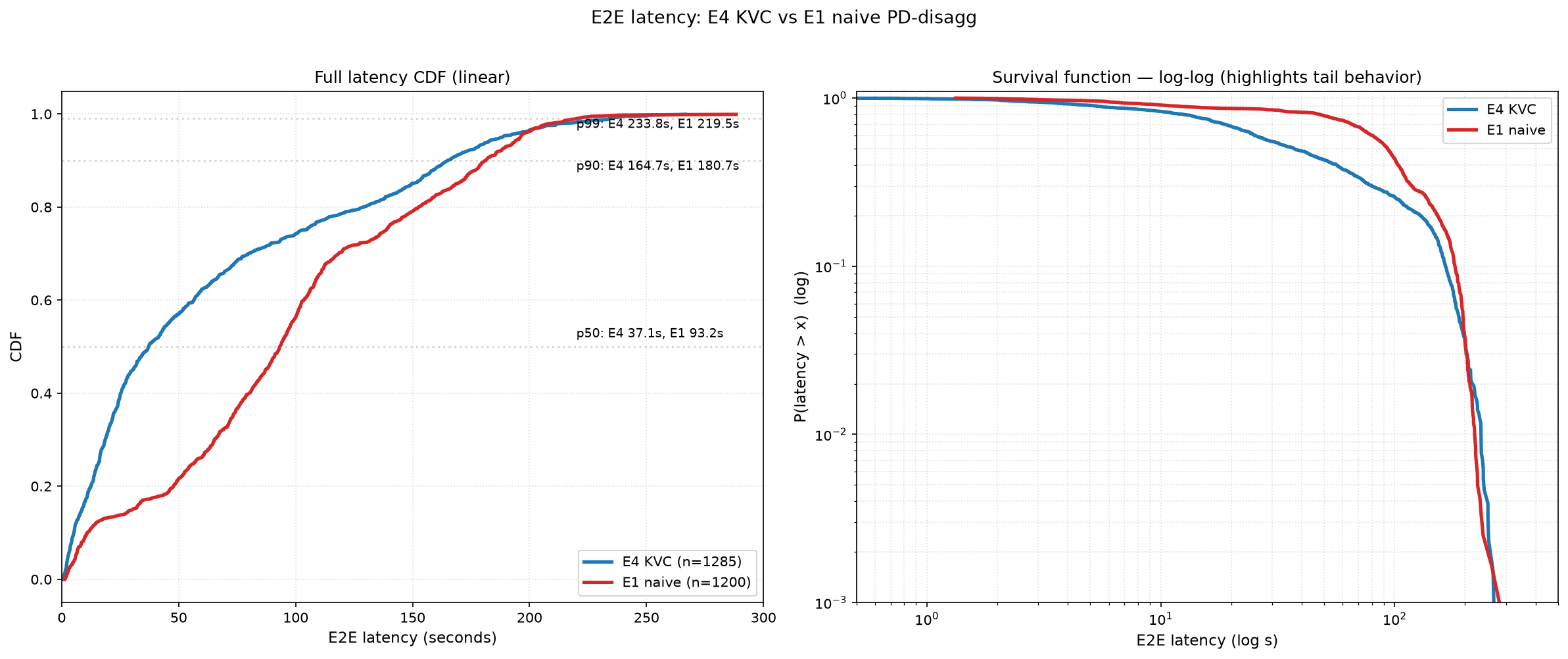

  e1_vs_e4_latency_cdf.png      — CDF + log-survival showing tail crossover
  e4_path_latency.png           — per-execution-mode latency breakdown
  e1_vs_e4_p99_attribution.png  — what makes up E4's p99 tail

P99 tail attribution (this is the key finding):
  E4 p99 tail (n=65, TTFT ≥ 179.9s):
    fast-path direct-to-d        0 % (0/65)
    reseed paths                 5 % (3/65)
    fallback paths              88 % (57/65)
      large-append-session-cap  43 %  ← biggest culprit
      no-d-capacity             17 %
      large-append              14 %

Implication: D→P snapshot (designed to optimize reseed slow path)
even if fully working would touch ≤5% of the p99 tail. The real
bottleneck is *fallback chain* (admission retry + seeded-router
cold start), not reseed. Optimizing p99 needs work on fallback,
not more D→P plumbing.

Full analysis: docs/E4_VS_E1_RESULTS_ZH.md
