Frontier vs vLLM H20 Alignment Summary

Date: 2026-06-25

This document summarizes the current ReplayServe comparison between Frontier simulation and real vLLM runs on H20 for Qwen3-30B-A3B. It covers TP=1/2/4, different timestamp scales, and 100/200/500-request windows from qwen_coder_blksz_16.jsonl.

The source data and plots are generated by:

~/.venv/plot/bin/python tools/build_frontier_vllm_alignment_report.py

Generated artifacts:

• docs/assets/frontier_vllm_alignment/frontier_vllm_alignment.csv
• docs/assets/frontier_vllm_alignment/frontier_vllm_alignment.json

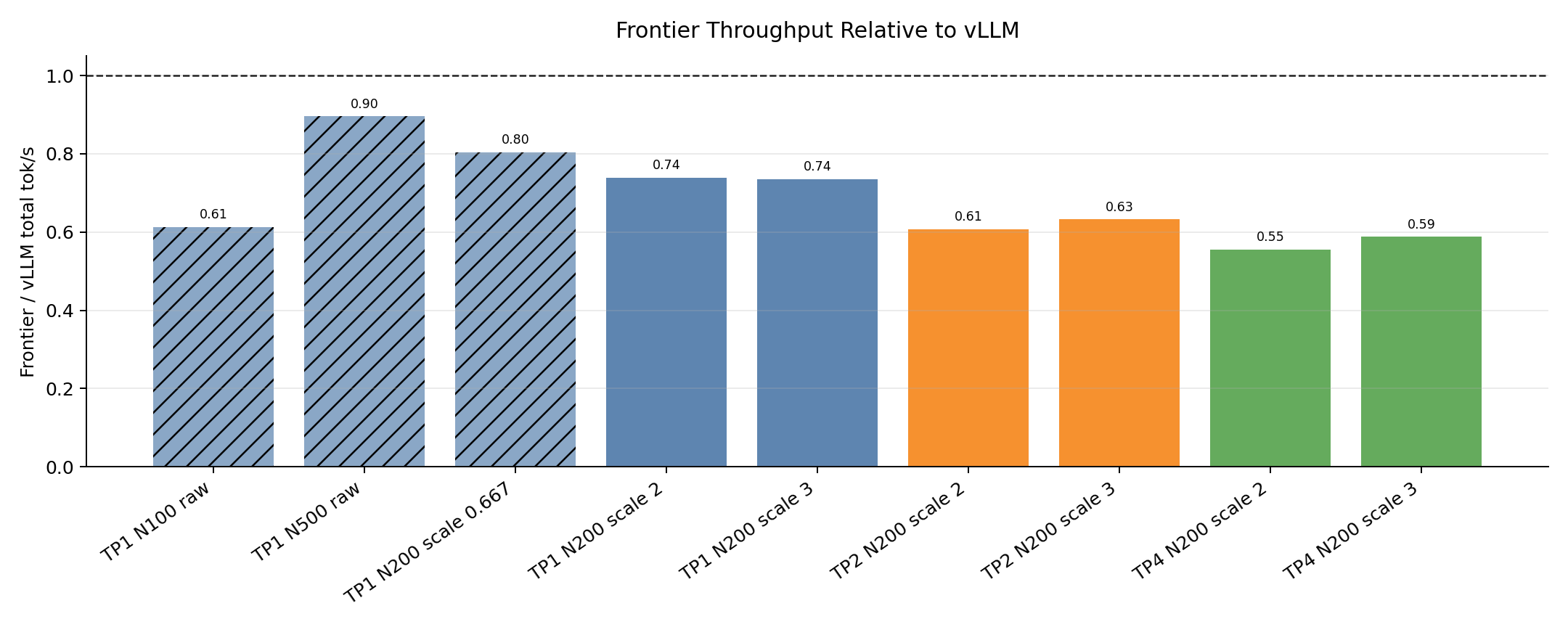

• docs/assets/frontier_vllm_alignment/throughput_ratio.png

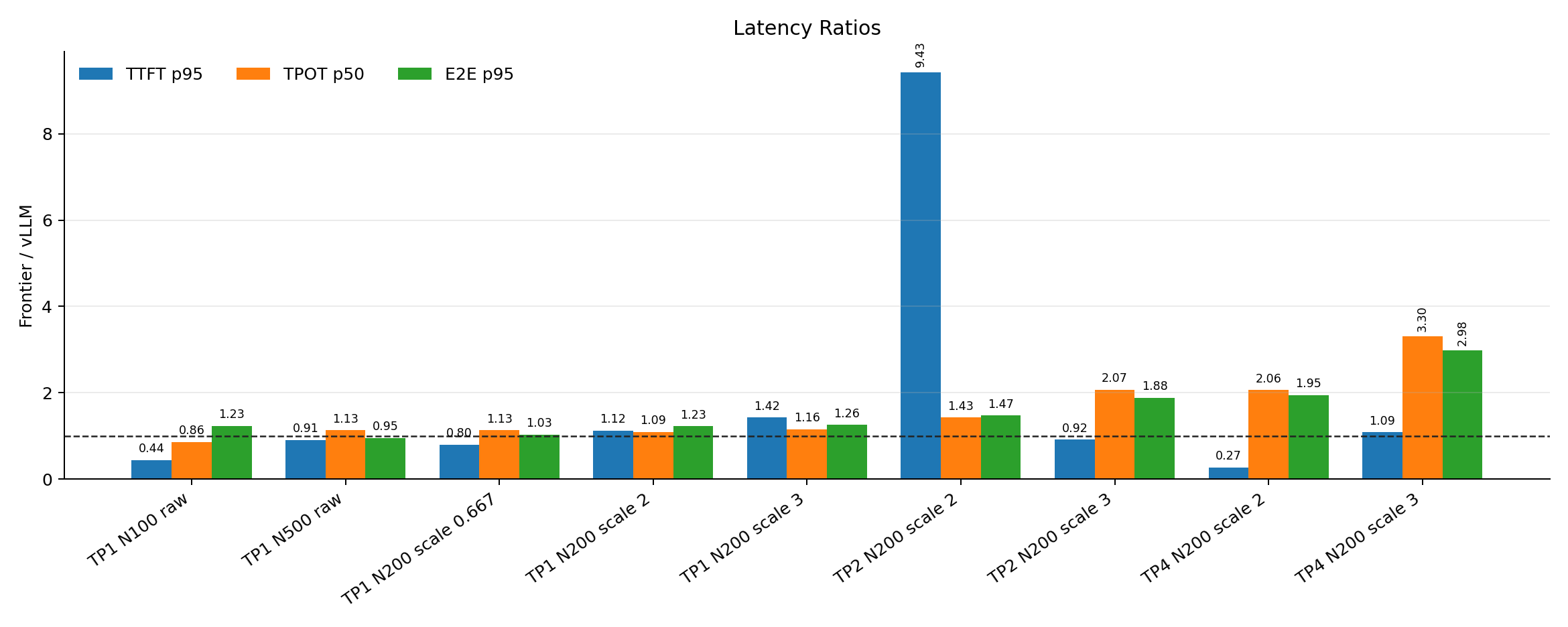

• docs/assets/frontier_vllm_alignment/latency_ratios.png
• docs/assets/frontier_vllm_alignment/tp_scaling_total_tps.png

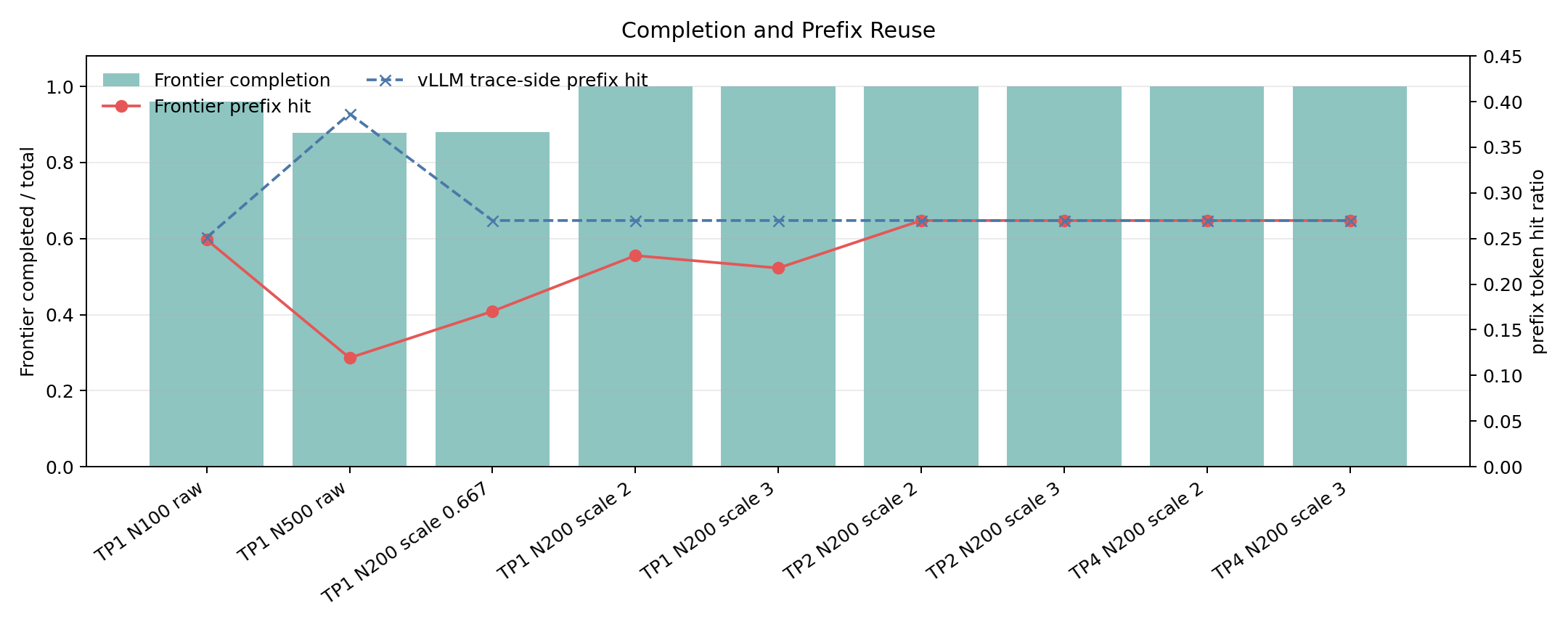

• docs/assets/frontier_vllm_alignment/completion_prefix.png

Bottom Line

Functional replay is now usable for the clean 200-request runs:

• TP1 scale 2/3 after the Frontier lifecycle fix: 200/200 completed.
• TP2/TP4 scale 2/3: 200/200 completed, no preemption on either side, matched vLLM KV block counts, and exact trace-side prefix reuse ratio.

Performance is not fully calibrated:

• TP1 scale 2/3 is the closest current operating point: Frontier throughput is about 0.74x vLLM and TPOT p50/p95 is close.
• TP2/TP4 is functionally aligned but slower: Frontier throughput is only 0.55-0.63x vLLM, and TP4 TPOT is too pessimistic.
• Frontier underestimates the TP2->TP4 speedup. vLLM improves total throughput by 1.15-1.20x; Frontier improves by only 1.07-1.10x.

Current use: acceptable for integration work and rough qualitative trends, not yet acceptable as a calibrated absolute performance predictor.

Run Matrix

All vLLM runs use vLLM 0.11.1, H20, Qwen3-30B-A3B, max_model_len=32768, max_num_seqs=64, max_num_batched_tokens=32768, gpu_memory_utilization=0.85, prefix caching, and chunked prefill.

run	Frontier rows	preempt F/V	prefix hit F/V	total tok/s F/V	ratio	TPOT p50 F/V	E2E p95 F/V
TP1 N100 raw	96/100	0/8	0.249/0.251	2349/3832	0.61	0.0569/0.0661s	119.6/97.4s
TP1 N500 raw	439/500	0/63	0.119/0.387	4734/5283	0.90	0.0564/0.0498s	397.3/417.4s
TP1 N200 scale 0.667	176/200	0/26	0.170/0.270	3913/4865	0.80	0.0584/0.0515s	189.2/183.7s
TP1 N200 scale 2	200/200	33/43	0.231/0.270	3506/4743	0.74	0.0542/0.0497s	174.5/142.3s
TP1 N200 scale 3	200/200	20/16	0.218/0.270	3390/4608	0.74	0.0534/0.0462s	154.5/122.8s
TP2 N200 scale 2	200/200	0/0	0.270/0.270	4581/7547	0.61	0.0430/0.0300s	106.8/72.5s
TP2 N200 scale 3	200/200	0/0	0.270/0.270	4062/6426	0.63	0.0394/0.0191s	101.6/54.0s
TP4 N200 scale 2	200/200	0/0	0.270/0.270	5035/9073	0.55	0.0337/0.0163s	84.9/43.6s
TP4 N200 scale 3	200/200	0/0	0.270/0.270	4355/7403	0.59	0.0311/0.0094s	83.0/27.9s

Important prefix caveat: the vLLM prefix-hit column in this table is the trace-side synthetic estimate from the vLLM summaries. For TP1 runs with preemption and finite KV pressure, the observed vLLM scheduler computed: signal is the better comparator. Earlier analysis in docs/rs4_frontier_h20_tp1_alignment.md records those finite-cache comparisons. For TP2/TP4, no preemption occurs and the trace-side prefix ratio matches Frontier exactly.

Plots

Interpretation

TP1

The early TP1 100/500/scale-0.667 runs are still useful as historical stress points, but they were run before the decode-preemption lifecycle fix. Frontier therefore missed rows in those runs:

• 96/100 for N100 raw
• 439/500 for N500 raw
• 176/200 for N200 scale 0.667

After the lifecycle fix, TP1 scale 2 and scale 3 both complete 200/200. Preemption is now in the same order as vLLM:

• scale 2: Frontier 33 vs vLLM 43
• scale 3: Frontier 20 vs vLLM 16

TP1 timing is the closest current calibrated region. Throughput is about 0.74x vLLM, TPOT p50/p95 is close, and E2E p95 is about 1.23-1.26x vLLM. This is not perfect, but it is usable for integration-level trend checks.

TP2 and TP4

The TP2/TP4 runs are functionally cleaner than TP1:

• 200/200 completed for all four runs.
• Frontier and vLLM both report no preemption.
• Frontier uses explicit vLLM KV capacities:
  • TP2: 69,055 blocks
  • TP4: 177,077 blocks
• Prefix hit ratio matches exactly: 0.2697549478.

We did profile TP2/TP4 true-mixed attention. The active RS12 profile includes:

• attention_tp2_tp4_combined.csv: 36,163 rows, including 1,260 true-mixed prefill+decode rows for TP2/TP4.
• linear_op_tp2_tp4_full32k.csv: covers up to 32,768 tokens.
• moe_tp2_tp4_full32k.csv: covers up to 32,768 tokens.

Without the true-mixed rows, Frontier fails with missing attn_decode_in_mixed predictions. With them, all RS12 runs complete.

The remaining TP2/TP4 gap is therefore not a missing-profile blocker. It is a timing-model gap:

• TP2 throughput is 0.61-0.63x vLLM.
• TP4 throughput is 0.55-0.59x vLLM.
• TP4 TPOT p50 is 2.06-3.30x vLLM.

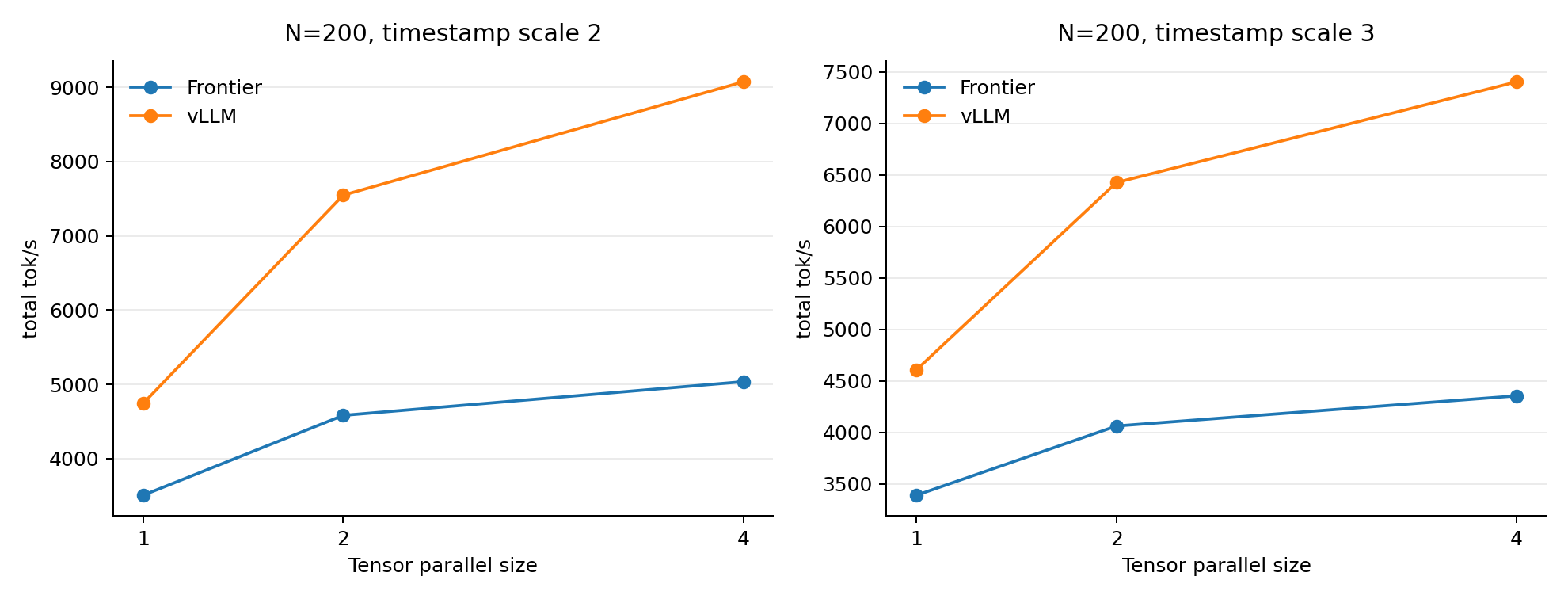

Scaling

For the same first-200 request fixtures:

fixture	metric	Frontier TP4/TP2	vLLM TP4/TP2
scale 2	total tok/s	1.10	1.20
scale 2	decode tok/s	1.10	1.20
scale 2	TPOT p50	0.78	0.54
scale 3	total tok/s	1.07	1.15
scale 3	decode tok/s	1.07	1.15
scale 3	TPOT p50	0.79	0.49

Frontier sees some TP4 improvement, but much less than real vLLM. This is the clearest current evidence that the simulator is not yet modeling vLLM's TP-dependent decode execution path well enough.

Likely Gap Sources

The main unresolved issues are:

• CPU/scheduler overhead is still skipped (skip_cpu_overhead_modeling=true).
• Decode CUDA graph behavior is not modeled in the current Frontier runs (decode_cuda_graph_mode=none).
• Random-forest predictors interpolate over profile grids, while real online mixed batches may concentrate on shapes not directly sampled.
• Some TP4 predictor fit errors are nontrivial, for example attn_kv_cache_save MAPE around 11% in the TP4 profile log.
• Frontier's scheduler and preemption behavior is close but not identical for TP1 under finite KV pressure.

ReplayServe TODO

1. Rerun the 500-request TP1 stress after the decode-preemption lifecycle fix, so the 500-row result is no longer mixed with the old incomplete behavior.
2. Record vLLM observed scheduler prefix/preemption metrics in machine-readable summaries, not only in docs, especially first-start and last-start computed: ratios.
3. Add a shape-ledger analysis: compare Frontier's actual online batch shapes against the profile grid and identify hot shapes that are interpolated.
4. Profile or import vLLM CPU overhead and test skip_cpu_overhead_modeling=false.
5. Collect kernel-only / decode-CUDA-graph timing profiles before enabling a Frontier CUDA-graph decode mode.
6. Calibrate TP2/TP4 timing only after the above, because current functional replay is aligned but the TP scaling is not.
